120W LED Street lamp head Specifications (in English)
 二维码
发表时间:2017-05-21 17:22作者:路灯厂-江成如来源:led路灯参数表网址:http://www.jinguanjituan.com

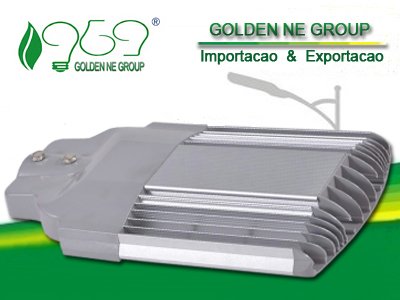

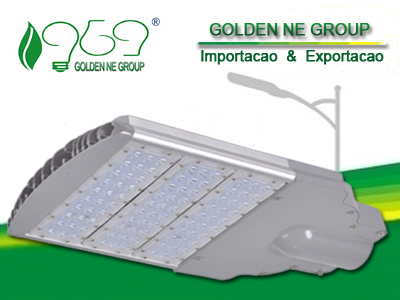

LED Street Lamp

feature


1.1 Humanized optical design

The whole lamp has no glare design, the light is soft and comfortable. Lens using high-temperature PC material, a casting molding, to avoid yellowing caused by light failure, light transmission effect, excellent light transmission performance, no dark areas, no spots, a uniform light.

1.2 Long life, good heat dissipation

Aluminum alloy shell design, lamp beads directly attached to the aluminum shell on the shell, more conducive to heat and extend lamp life.

1.3 High light efficiency, high significant means

The product adopts high quality SMD LED as light source, with high luminous efficiency, high color rendering index and even light output.

1.4 Good Security

Products using isolated power supply as a light source drive power, power supply output voltage in line with safe voltage range, lightning. Insulation and electromagnetic interference in line with international standards.

Adopting industry safety standards:

●IEC 60598-1 Lamps - General safety requirements and tests

●EN55015 Electromagnetic Interference - Conduction

●EN55022  Electromagnetic scrambling - radiation

1.5Anti-oxidation,anti-radiation surface treatment       Lamp housing electrostatic electrostatic powder coating treatment, anti-oxidation, anti-radiation performance, durable.

1.6 Energy saving and environmental protection

This product is energy-saving environmentally friendly products, lead and other harmful substances.

1.7 Easy to install

Only a few screws, you can adjust the angle of the installation process easy.

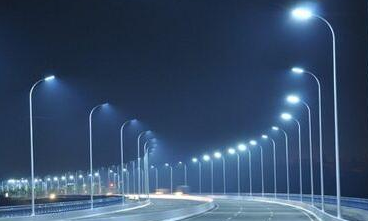

1.8 Application site

Products applicable to highways, urban trunk roads and secondary roads, stadiums, schools, industrial areas, plazas and other places of road lighting.


2 Technical Parameters

2.1 Basic parameters

ELECTRICAL CHARACTERISTICS

power supply

Constant current drive power


LED Voltage

DC 30~36V

Input voltage

AC85~240V 50/60Hz

LED Current

4200~4500mA

input power

120W±10%

Overcurrent protection

8000mA

LED power

115-120W

Short circuit protection

30000mA

Power Factor

≧0.95

Service life

≧5 years

Power efficiency

≧90%

Output plug wire length

Exposed 220mm

Degree of protection

Degree of protection

IP65








2.2 Optical parameters

Optical properties

Luminous flux

≧15000Lm


Chip manufacturers


Color rendering index

≧75

Light source specifications

High Power 45*45

Beam angle

100º±5%

Number of lamp beads

integrated 1

Color temperature

2800~3200K;

4000~4500K;

5800~6200K

Maximum operating temperature

≦65°C

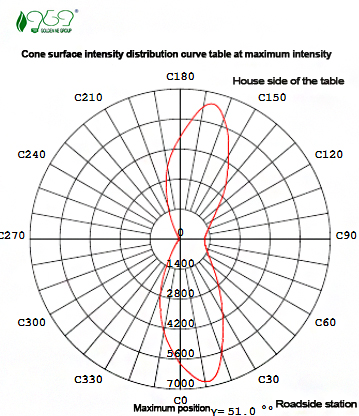

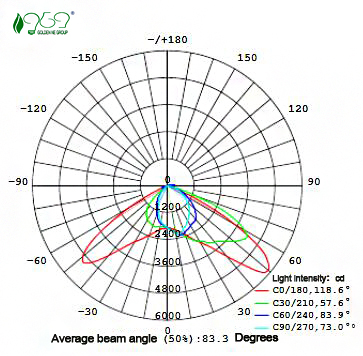

Light distribution curve


2.3 Driving power supply technical parameters

ELECTRICAL CHARACTERISTICS

Basic characteristics

Power Type

Constant Current Driver


Constant current accuracy

±5%

input power

115~120W

Ambient temperature Ta

45°C

Input voltage

AC85~240V

50/60Hz

Case temperature Tc

65°C

Power Factor

≧0.95

Output current ripple

≦60mA

Power efficiency

≧90%

Overcurrent protection

8000mA

Output Power

115-120W

Short circuit protection

30000mA

The output voltage

DC 36~48V

Overheat protection

85°C

Output current

450mA

Anti-lightning

6000V

Degree of protection

IP65


Service life

≧5years

special requirements

Certification

■3C          □CE          □UL

Power supply standard

■isolatio □Non-isolated


Input terminal

■Have     □No

Strobe situation(Camera Capture)

□Strobe     ■No

Output terminal

■Have     □No

Power box screws small cover

□gray □purple ■white

Output simple socket

□Have      ■No

Exposed line length

500mm

Enter the power cord

1.0mm2 Brown blue yellow three-core line, Black outer insulation, long (exposed) 500mm, AC input stripping the skin 15mm, stripping head 6mm, dip tin.


Output power cord specifications

0.75mm2 Red and black dual-core wire, black insulation sheath, exposed wire length 220mm.


Power cord certification

□UL        □VDE        ■3C       □No

Specification of lamps and lanterns

According to the actual production to determine lamp size



3 . Lamp protection function

3.1  One-time protection

When the lamp failure input current is greater than 2A, the power input fuse burned to protect the electrical network is not affected by other electrical appliances.

3.2 Secondary protection

Secondary protection includes over-current protection and short-circuit protection, over-temperature protection.

3.2.1 Overcurrent protection

When the output current is greater than 2.5 times the normal operating current of the lamp, the power supply to stop the current output within 30mS;

3.2.2 Short circuit protection

When the output current is greater than 5 times the lamp normal operating current, the power supply within 1mS to stop the current output.

4 .Use of the environment

project

condition

Remarks

4.1 Use ambient temperature

-40℃~+50℃


4.2 Storage ambient temperature

-25℃~+60℃


4.3 Environmental Relative Humidity

10%~90%



5. Inspection standards

project

content

Inspection rate

5.1 Visual inspection

Don’t allow dirt, scratches, color and off-shell.

100%

5.2 function test

Turn on the power tester to detect the power value; the measured value is within ± 10% of the nominal value。

100%

5.3 Aging test

Aging products in the aging shelf 8 hours, the product performance with normal.

100%

5.4 Packaging inspection

Installation of accessories, complete without error certificate。

100%

6. Reliability test

Project

instrument

Test method (basis)

6.1 Pressure test

Pressure tester

Refer to the standard IEC 60598-1 "General requirements for lamps"

Power input to the lamp housing should be applied frequency stability of the sine wave voltage 2750V +4 * U, leakage current shall not exceed 10mA and the test time of 10min the instrument shall not alarm. (Note: U refers to the power supply maximum operating voltage)

6.2 EMC test

Radio Scrambling Laboratory

Reference standards EN55015 and EN55022 standards.

6.3 IP test

Security protection test room

Reference to IEC 60598-1 "General requirements for luminaires"

The protection design of this product is IP68.

6.4 Salt spray test

Salt spray test instrument

Reference to IEC 60598-1 "General requirements for luminaires"

Paints and varnishes - Determination of resistance to neutral salt spray and corrosion resistance of metal coatings and chemical treatment coatings for light industrial products - Method of test for neutral salt spray (NSS) - Method of spraying salt spray test apparatus for 96h testing time.

6.5 High temperature test

Humidity Chamber

The lamp is placed in the instrument to work properly, to be stable after the test; the temperature is set to +60 ° (± 2 °), humidity 50%; the lamp on the instrument work 8h.

6.6 Low temperature test

The lamp is placed in the instrument to work properly, to be stable after the test; the temperature is set at -40 ° (± 2 °), humidity 50%; the lamp on the instrument work 8h

6.7 Constant temperature and humidity testing

The lamp is placed in the instrument to work properly, to be stable after the test; the temperature is set at 25 ° (± 2 °), humidity 50%; the lamp on the instrument work 8h.

6.8 Thermal shock

Hot and cold impact Shiyan Xiang

The temperature of the equipment is set to -40 ° to 60 °, the humidity is 50%, the impact time is 10 minutes, and the test time is 50 times.

7 .Installation Instructions

7.1 Procedure:

  Confirm that the AC mains power cord has been disconnected from the power supply, stripping the mains power line L and N-line thread; the same law, stripping the LED lamp drive power input power cord, corresponding to the lamp drive power input L Line then the mains L-line, N-line access to the N line of electricity. After a good electrical insulation tape with a good tie.

   After connecting the wires, loosen the screws on the lamp holder arm, connect the lamp holder arm to the pole fixing arm, adjust the illumination angle and tighten the screws.

 7.2 Installation Drawing:



7.3 Installation Precautions

Turn off the power before installing. When installing the lamp, please do not damage or break through the insulation of the power cord, so as to avoid hidden danger or danger.

Please cut off the power after the operation, the installation is complete and then turn on the power!


8. Maintenance

8.1 Fixing screws are loose or damaged, otherwise replace (1-2 years);

8.2 Check the lamp is tilted, damaged, be corrected or replaced (1-2 years).


9. Precautions

9.1 Before installation, please read the instructions carefully and follow the instructions.

9.2 installation and maintenance of lamps according to the guidance of professional staff;

9.3 All parts in the installation process should be tightened to ensure that the components are connected firmly and reliably;

9.4 No unauthorized opening of the product cover;

9.5 Connecting When disassembling or repairing, disconnect the power supply.

                                                (THAT'S ALL)

  The data comes from the Group's technology department
